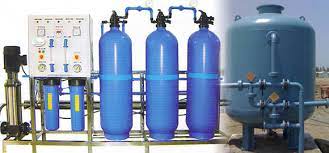

DM Plant Installation refers to the setup of a Deionization (DM) Plant, which removes ionizable particles from water to produce high-purity water. DM plants are widely used in industries like pharmaceuticals, electronics, chemicals, and power generation, where water quality plays a critical role. Proper installation ensures that the plant operates efficiently and provides the expected quality of demineralized water.

Key Components of a DM Plant:

1. Cation and Anion Exchange Resins: These are the primary materials used for ion exchange in a DM plant. Cation exchange resins remove positively charged ions (like sodium, calcium, and magnesium), while anion exchange resins remove negatively charged ions (like chloride, sulfate, and bicarbonate).
2. Pressure Vessels: These hold the resins in place during the ion exchange process.
3. Control Valves and Piping: These regulate the flow of water through the plant, directing water through the resin beds for demineralization.
4. Regeneration System: This system restores the resin’s ion-exchange capacity using chemicals (typically acids and bases).
5. Mixed Bed Units (Optional): Some plants may also include mixed bed polishers for additional purification, often used in high-purity applications.

Steps for Installing a DM Plant:

1. Site Assessment and Design:

Before installation, it’s crucial to assess the site and determine the capacity and type of DM plant required. Consider factors like water demand, water quality, available space, and any specific water quality requirements of the process or application. The plant design must meet these specifications, including appropriate sizing of the resin beds, vessels, and other components.

2. Foundation and Space Requirements:

The DM plant must be installed on a stable and level foundation. Consider space for both the primary units (cation and anion exchange tanks) and auxiliary equipment (regeneration tanks, control panels, and piping). Adequate room for maintenance and operation, such as easy access to valves and the resin beds for replacement or regeneration, is essential.

3. Mechanical Installation:

• Placement of Components: The pressure vessels containing the ion exchange resins are installed first. These should be positioned according to the plant layout.
• Piping and Valves: After placing the vessels, interconnecting pipes and valves are installed. PVC or stainless steel is typically used, depending on water chemistry and operational conditions. The piping network ensures the flow of raw water into the plant, the distribution of treated water, and the flow of regeneration chemicals during maintenance.
• Control Panels: The control systems, including valves, flow meters, and timers, are installed. Automatic or manual control options are available, but automatic controls are often preferred for large-scale operations to ensure consistent performance.

4. Electrical Installation:

The electrical system, including power connections for pumps, flow meters, and control panels, is installed. Ensure that the electrical system adheres to safety standards and has adequate protection from water exposure.

5. Regeneration System Setup:

The regeneration system, which includes tanks for the acid and caustic used in resin regeneration, is installed. Piping for the regeneration process must be properly connected to the cation and anion vessels.

6. Startup and Testing:

Once the installation is complete, the plant undergoes commissioning. Water is flushed through the system to ensure that all components are functioning correctly and that there are no leaks or blockages. The resin is then regenerated, and the quality of deionized water is tested to ensure it meets the required standards.

Key Considerations:

• Water Quality Monitoring: Regular checks of water conductivity or total dissolved solids (TDS) are essential to ensure the plant is performing correctly.
• Regeneration Cycle Management: Monitoring the resin’s ion-exchange capacity and scheduling timely regenerations is critical for uninterrupted service.
• Safety: DM plants involve the handling of hazardous chemicals (acids and bases) during resin regeneration. Proper safety protocols, including protective gear and safe chemical storage, are essential.

Conclusion:

Proper DM plant installation is vital to ensure optimal water purification performance. From selecting the appropriate equipment and setting up the foundation to ensuring correct mechanical and electrical connections, each step must be handled with care. With regular maintenance and timely regeneration, a DM plant can provide high-quality, demineralized water essential for various industrial processes.
